One Channel Digital Vacuum Controller , Digital Vacuum Switch

Name: One Channel Digital Vacuum Controller Digital Vacuum Switch
Brand: GUOGUANG
Price: 1 USD

Brand Name : GUOGUANG

Model Number : ZDO-53

Place of Origin : Sichuan, China (Mainland)

MOQ : Negotiation

Price : Negotiation

Payment Terms : T/T

Supply Ability : 200 Pieces per Month

Delivery Time : 10 days(less than 50pcs)

Packaging Details : Export Packing: Carton box

Pressure Range : 1.0×10 3 ~1.0×10 - 2 pa

Testing channel : one channel

Equipped gauge : ZJ-53B;ZJ-54D

Measurement Accuracy : ±30%

Control mode : threshold or range

Contact Now

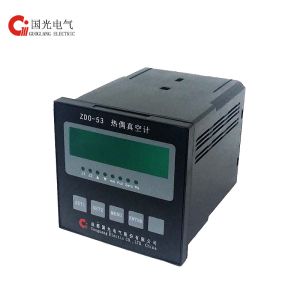

Thermocouple Vacuum Controller ZDO-53

Thermocouple Vacuum Controller:

It uses the heat conduction principle to work. It uses a new type of short wire thermocouple vacuum gauge sensor. It has the characteristics of fast response, long life, strong anti-pollution ability and good consistency. It is a common measuring instrument for rough and low vacuum. The main type of Guoguang brand thermocouple vacuum controller is ZDO-53, which is the electric current thermocouple vacuum controller.

Parameter

Measurement Range	(1.0x10³~1.0x10^-2)pa
Gauge(Can choose interface)	ZJ-53B;ZJ-54D
Measurement channels	1 channel
Display Mode	LED digital display
Power Supply	AC220V ± 10%50Hz
Rated power	20W
Weight	≤1KG
Control channels(can be extended)	2 channels
Control range	(1.0x10³~1.0x10^-2)pa
Control mode	threshold or range
Rated Load of the control device	AC220V/3A non inductive load
Measurement Accuracy	±30%
Reaction Times	<1s
analog output	0~5V;4~20mA(choose)
communication Interface	RS-232;RS-485(choose)
